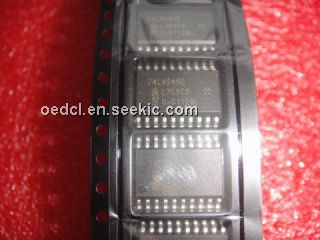

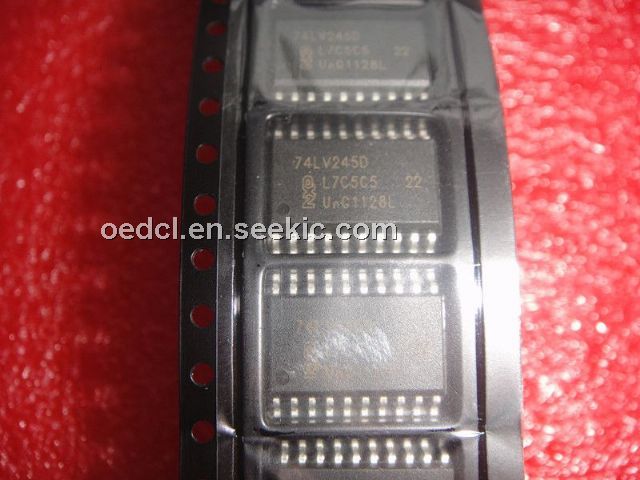

74LV245D

low-voltage Si-gate CMOS device, -0.5 to +7V, 400mW, 35mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 1000 :	0.80 / Piece

PartNumber:: 74LV245D

Brand:: Lumileds Lighting Company - Philips | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-15

From Other Seller

Part Number:74LV245D
US $0.80 - 1.00
Quantity:

piece

Product Summary

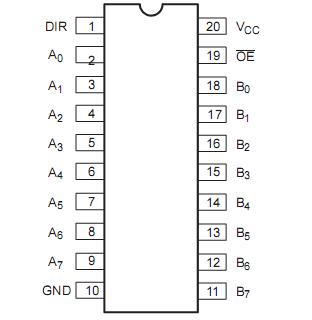

The 74lv245d is a low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT245. The 74lv245d is an octal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The 74lv245d features an output enable (OE) input for easy cascading and a send/receive (DIR) input for direction control.

Parametrics

74lv245d absolute maximum ratings: (1) DC supply voltage Vcc: -0.5 to +7V; (2) DC input diode current ±IIK: 20mA (VI<-0.5 or VI> Vcc + 0.5V) ; (3) DC output diode current: 50mA (Vo<-0.5 or Vo> Vcc + 0.5V) ; (4) DC output source or sink current-bus driver output ±Io: 35mA (-0.5V <Vo< Vcc + 0.5V) ; (5) DC Vcc or GND current for types with - bus driver output ±IGND, ±Icc: 70mA; (6) Storage temperature range Tstg: -65 to +150°C; (7) Ptot: 400mW.

Features

74lv245d features: (1) Wide operating voltage: 1.0 to 5.5V; (2) Optimized for low voltage applications: 1.0 to 3.6V; (3) Accepts TTL input levels between Vcc= 2.7V and Vcc=3.6V; (4) Typical Volp (output ground bounce) < 0.8V at Vcc= 3.3V, Tamb=25°C; (5) Typical VOH (output VOH undershoot) > 2 V at Vcc= 3.3V, Tamb=25°C; (6) Output capability: bus driver; (7) Icc category: MSI.
