Product Summary

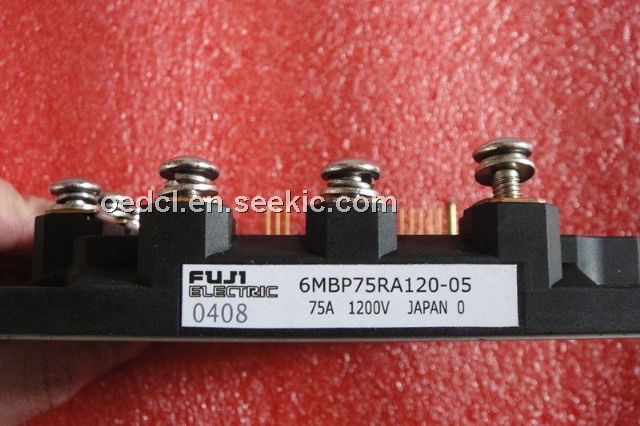

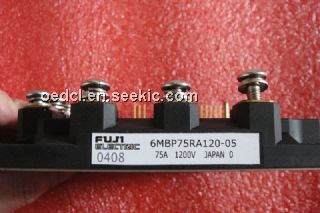

The 6MBP75RA120-05 is a IGBT-IPM.
Parametrics
6MBP75RA120-05 absolute maximum ratings: (1)DC bus voltage: 0 to 900V; (2)DC bus voltage (surge): 0 to 1000V; (3)DC bus voltage (short operating): 200 to 800V; (4)Collector-Emitter voltage: 0 to 1200V; (5)Collector current DC: 75A; (6)Collector power dissipation: 500W; (7)Junction temperature: 150℃; (8)Input voltage of power supply for Pre-Driver: 0 to 20V; (9)Input signal current: 1mA; (10)Alarm signal current: 15mA; (11)Storage temperature: -40 to 125℃; (12)Operating case temperature: -20 to 100℃.
Features
6MBP75RA120-05 features: (1)Temperature protection provided by directly detecting the junction; (2)temperature of the IGBTs; (3)Low power loss and soft switching; (4)Compatible with existing IPM-N series packages; (5)High performance and high reliability IGBT with overheating protection; (6)Higher reliability because of a big decrease in number of parts in; (7)built-in control circuit.

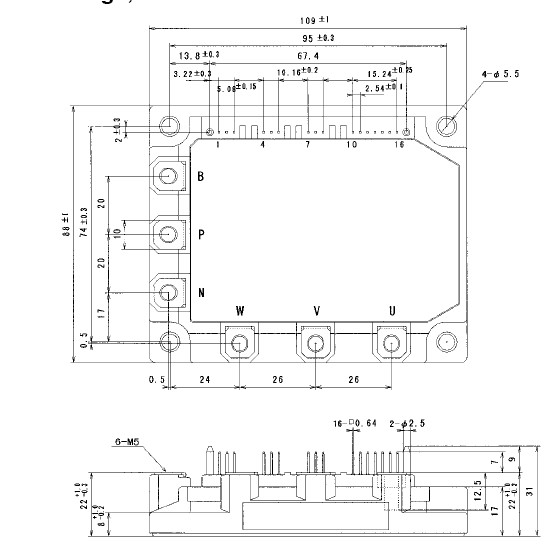

Diagrams
