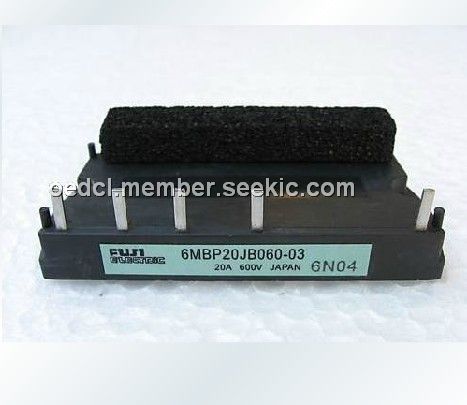

The 6MBP20JB060-03 is an IGBT module.
Parametrics
6MBP20JB060-03 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 0 to 600 V; (2)Short Circuit Voltage VSC: 200 to 400 V; (3)Collector Current DC IC: 200 A; (4)Collector Current 1ms Icp: 400 A; (5)Collector Current Duty=50.3% -IC: 200 A; (6)Collector Power Dissipation 1 device PC: 462 W; (7)Supply Voltage of Pre-Driver VCC: -0.5 to 20 V; (8)Input Signal Voltage Vin: -0.5 VCC+0.5 V; (9)Alarm Signal Voltage VALM: -0.5 VCC V; (10)Alarm Signal Current IALM: 20 mA; (11)Junction Temperature Tj: 150 ℃; (12)Operating Case Temperature Topr: -20 to 110 ℃; (13)Storage Temperature Tstg: -40 to 125 ℃; (14)Solder Temperature Tsol: 260 ℃.
Features
6MBP20JB060-03 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.
