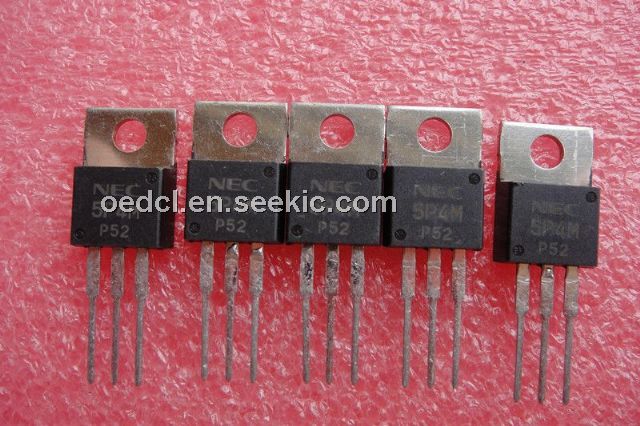

Product Summary

The 5P4M is a passivated thyristor in a plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. The 5P4M typical applications include motor control, industrial domestic lighting, heating and staticand switching.

Parametrics

5P4M absolute maximum ratings: (1)Repetitive peak off-state voltages VDRM VRRM: 400 V; (2)RMS on-state current IT(AV): 5.0 A; (3)Non-repetitive peak on-state current ITSM: 80 A; (4)Max. operating junction temperature Tj: 110 ℃; (5)Storage temperature Tstg: -45~150 ℃.

Features

5P4M features: (1)RMS on-state current IT(AV)full sine wave; Tmb ≤103°C: 5.0A; (2)On-state voltage VT IT=10A: 1.4 V; (3)Holding current IH VD = 24 V; IGT = 0.1 A: 10mA; (4)Gate trigger current IGT VD = 6.0 V; RL = 100Ω: 10 mA; (5)Gate trigger voltage VGT VD = 6.0 V; RL = 100Ω: 1.5 V.

Diagrams

5P4M pin connection
