3650HG

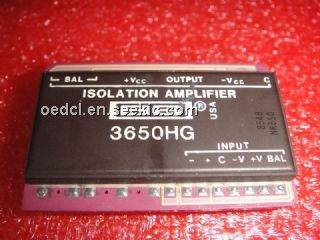

Optically-Coupled, Linear Isolation Amplifier, 15KHZ, 32CDIP, ±2000V, 140dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.80~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	4.00 / Piece
20 ~ 100 :	3.80 / Piece

PartNumber:: 3650HG

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-13

From Other Seller

Part Number:3650HG
US $3.80 - 4.00
Quantity:

piece

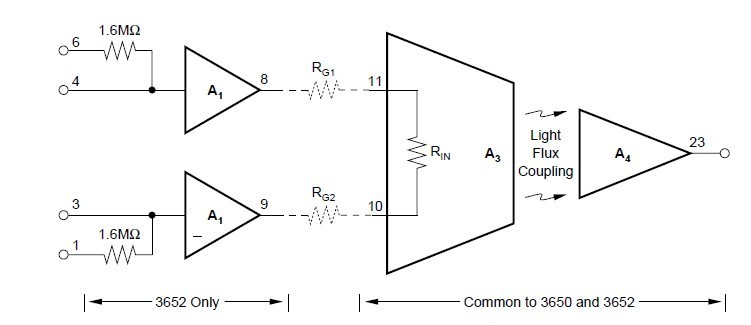

Product Summary

The 3650HG is a kind of Optically-Coupled Linear Isolation Amplifier.Compared to these earlier isolation amplifier, the 3650HG has the advantage of smaller size,lower cost, wider bandwidth and integrated circuit reliability. Also, because it uses a DC analog modulation technique as opposed to a carrier-type technique, the 3650HG avoids the problems of electromagnetic interference (both transmitted and received) that most of the modular isolation amplifiers exhibit. The typical applications of the 3650HG include: (1)Industrial process control; (2)Data acquisition; (3)Interface element; (4)Biomedical measurements; (5)Patient monitoring; (6)Test equipment; (7)Current shunt measurement; (8)Ground-loop elimination; (9)SCR controls.

Parametrics

3650HG absloute maximum ratings: (1)Output Voltage, min: ±10V; (2)Output Current, min: ±5mA; (3)Output Noise Voltage: 0.05Hz to 100Hz: 50mVp-p; 10Hz to 1kHz: 65mVrms; (4)Power Supply (Output Stage Only): Voltage (+VCC and –VCC): ±8V to ±18V; Current Quiescent : ±2.3mA typ, ±6mA max; with ±5mA Output, max: ±11mA; (5)Specification Temperature: 0℃ to +85℃; (6)Operating Temperature: –40℃ to +100℃; (7)Storage Temperature: –40℃ to +125℃.

Features

3650HG features: (1)BALANCED INPUT; (2)LARGE COMMON-MODE VOLTAGES: ±2000V Continuous; 140dB Rejection; (3)ULTRA LOW LEAKAGE: 0.35mA max at 240V/60Hz; 1.8pF Leakage Capacitance; (4)EXCELLENT GAIN ACCURACY: 0.05% Linearity; 0.05%/1000 Hrs Stability; (5)WIDE BANDWIDTH: 15kHz ±3dB; 1.2V/μs Slew Rate.
