Product Summary

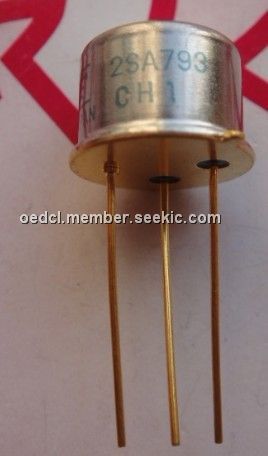

The 2SA793 is a Silicon PNP Power Transistor.
Parametrics
2SA793 absolute maximum ratings: (1)VCBO: -40V; (2)VCES: -32V; (3)VEBO: -6V; (4)IC: -300mA; (5)IC pulse: -1500mA; (6)PC: 300mW; (7)Tj: 125℃Tstg: - 55 to 125℃.
Features
2SA793 features: (1)BVCES: -32V; (2)BVCBO: -40V; (3)BVEBO: -6V; (4)ICBO: -1μA; (5)IEBO: -1μA; (6)hFE: 1000; (7)VCE(sat): -1.5V; (8)fT: 200MHz; (9)Cob: 3.0pF.
Diagrams
 |
