Product Summary
The 2SA1213 is a transistor for switching applications.
Parametrics
2SA1213 absolute maximum ratings: (1)collector-base voltage: -50V; (2)collector-emitter voltage: -50V; (3)emitter-base voltage: -5V; (4)collector current: -2A; (5)base current: -0.4A; (6)collector power dissipation: 500mW; (7)collector power dissipation: 1000mW; (8)junction temperature: 150℃; (9)storage temperature range: -55~150℃.
Features
2SA1213 features: (1)low saturation voltage; (2)high speed switching time; (3)small flat package; (4)complementary to 2SC2873.

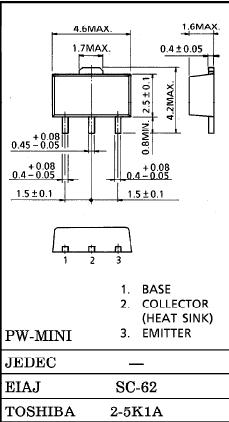

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

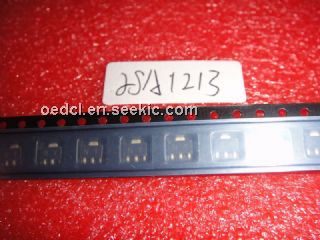

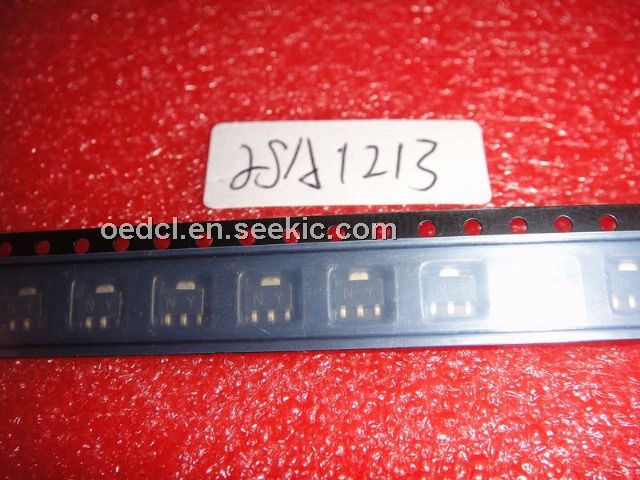

 2SA1213 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SA1213-Y |
Other |
|
Data Sheet |
Negotiable |
|
||||
