Product Summary
The 2N525 is a germanium transistor.
Parametrics
2N525 absolute maximum ratings: (1)VCB: -45V; (2)VCE: -30V; (3)VEB: -15V; (4)IC: 0.5A; (5)Ptot: 0.225W.
Features

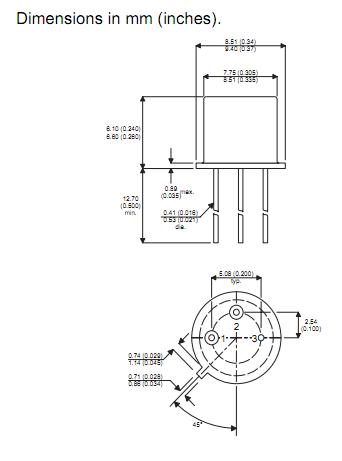

2N525 features: (1)hFE, IC: 0.1A; min: 23; (2)ft, IC: 0.001A; min: 0.8Mc/s; (3)VCE(sat), IB: 0.002A; max: 0.13V; (4)case: TO5.
Diagrams
