Product Summary

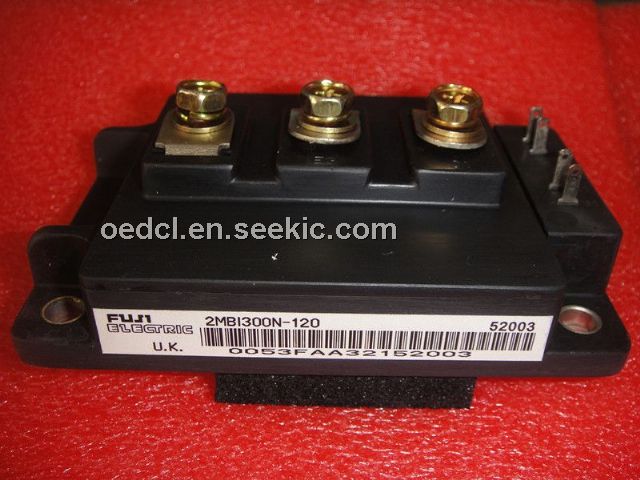

The 2MBI300N-120 is an IGBT module. The applications of the 2MBI300N-120 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI300N-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Collector Current Continuous IC: 300A; (4)Max. Power Dissipation PC: 2100W; (5)Operating Temperature Tj: +150℃; (6)Storage Temperature Tstg: -40 to +125℃; (7)Isolation Voltage A.C. 1min. Vis: 2500 V.
Features
2MBI300N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

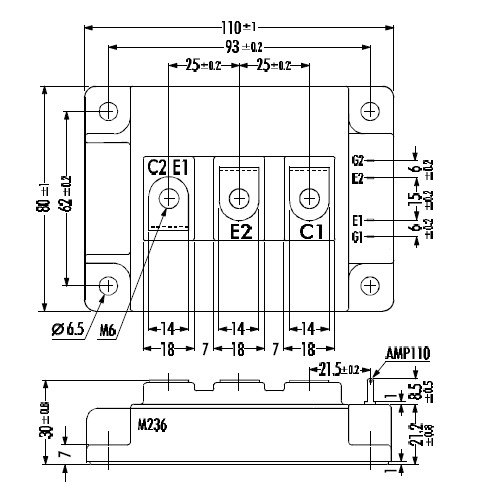

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

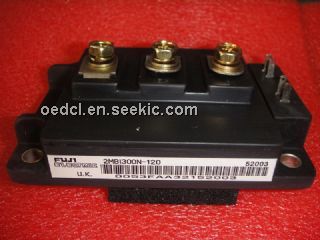

2MBI300N-120 |
Other |
Data Sheet |
Negotiable |
|
||||||
2MBI300N-120-01 |
Other |
Data Sheet |
Negotiable |
|
