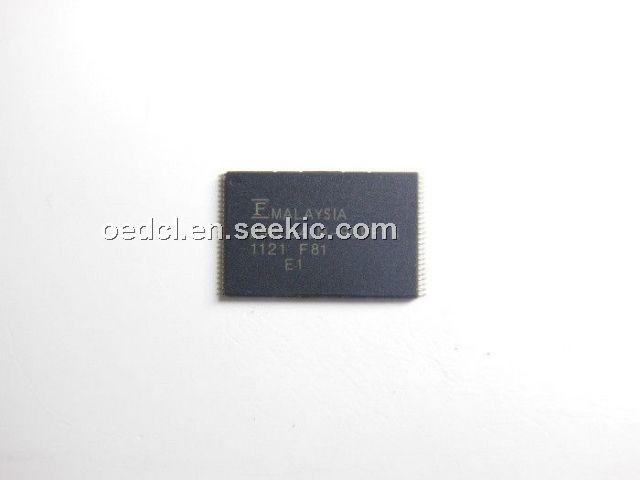

Product Summary
The 29PL64LM-90PFTN is a 64M-bit, 3.0 V-only Flash memory organized as 8M bytes by 8 bits or 4M words by 16 bits. The MBM29PL64LM is offered in 48-pin, 58-pin TSOP(1) and 80-ball FBGA. The device is designed to be programmed in-system with the standard 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. The devices can also be reprogrammed in standard EPROM programmers.
Parametrics
29PL64LM-90PFTN absolute maximum ratings: (1)Storage Temperature Tstg: –55 to +125 °C; (2)Ambient Temperature with Power Applied TA: –20 to +85 °C; (3)Voltage with Respect to Ground All Pins Except A9, OE, and RESET * 1, * 2 VIN, VOUT: –0.5 to VCC +0.5 V; (4)Power Supply Voltage * 1 VCC: –0.5 to +4.0 V; (5)A9, OE, and RESET * 1, * 3 VIN: –0.5 to +12.5 V; (6)WP/ACC * 1, * 3 VACC: –0.5 to +12.5 V.
Features
29PL64LM-90PFTN features: (1)0.23 m Process Technology; (2)Single 3.0 V read, program and erase; (3)Industry-standard pinouts; (4)Minimum 100,000 program/erase cycles; (5)High performance Page mode; (6)Sector erase architecture; (7)Embedded EraseTM * Algorithms: Automatically pre-programs and erases the chip or any sector; (8)Data Polling and Toggle Bit feature for detection of program or erase cycle completion; (9)Ready/Busy output (RY/BY); (10)Sector Group Protection Set function by Extended sector protect command; (11)Fast Programming Function by Extended Command; (12)Temporary sector group unprotection.

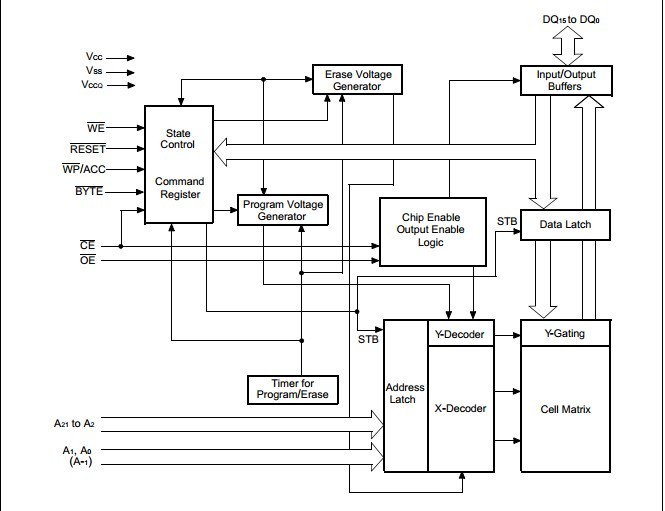

Diagrams
