Product Summary

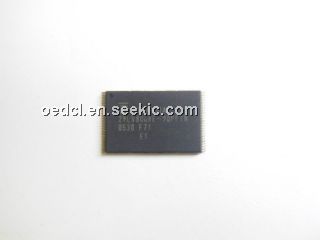

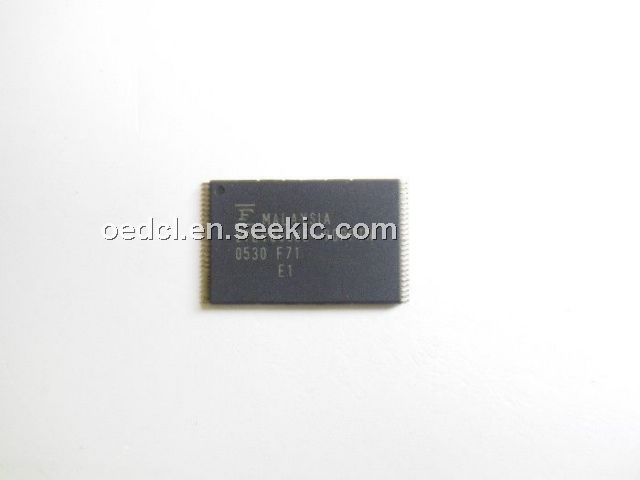

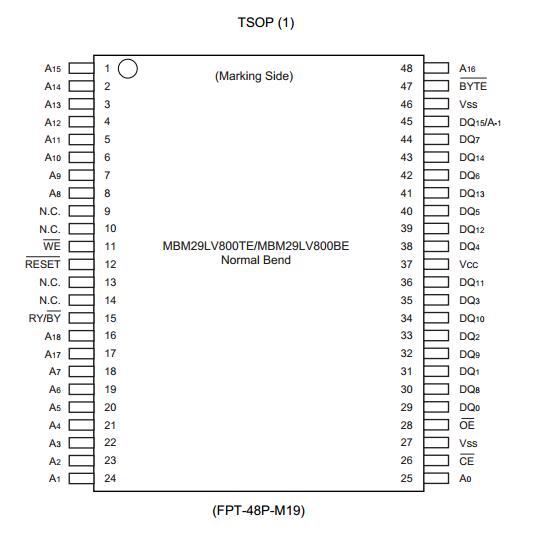

The 29LV800BE-90PFTN is an 8 M-bit, 3.0V-only Flash memory.It is organized as 1 M bytes of 8 bits each or 512 Kwords of 16 bits each. The 29LV800BE-90PFTN is offered in a 48-pin TSOP, 48-pin CSOP and 48-ball FBGA package. The device is designed to be programmed in a system with the standard system 3.0V VCC supply. 12.0V VPP and 5.0V VCC are not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.
Parametrics
29LV800BE-90PFTN absolute maximum ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Ambient Temperature with Power Applied: -40℃ to +85℃; (3)Voltage with Respect to Ground All pins except A9, OE, RESET: -0.5V to Vcc+0.5V; (4)Power Supply Voltage VCC: -0.5V to +5.5V; (5)A9, OE, and RESET VIN: -0.5V to +13.0V.
Features
29LV800BE-90PFTN features: (1)0.23μm Process Technology; (2)Single 3.0V Read, Program, and Erase; (3)Minimum 100,000 Program/Erase Cycles; (4)70ns maximum access time; (5)Sector Protection Set Function by Extended Sector Protection Command; (6)Fast Programming Function by Extended Command; (7)Temporary Sector Unprotection.
