Product Summary

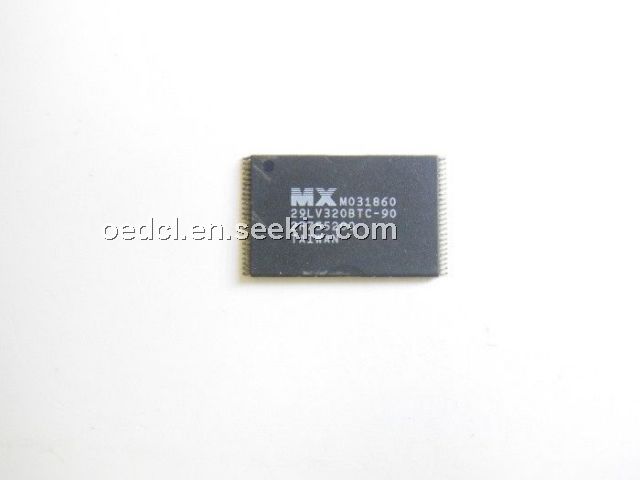

The 29LV320BTC-90 is a 32-mega bit flash memory organized as 4M bytes of 8 bits and 2M words of 16 bits. The 29LV320BTC-90 offer the most cost-effective and reliable read/write non-volatile random access memory. The 29LV320BTC-90 is packaged in 48-pin TSOP and 48-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers. The standard 29LV320BTC-90 offers access time as fast as 70ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the 29LV320BTC-90 has separate chip enable (CE) and output enable (OE) controls.
Parametrics
29LV320BTC-90 absolute maximum ratings: (1)Storage temperature plastic packages: -65℃ to +150℃; (2)Ambient temperature with power applied: -65℃ to +125℃; (3)Voltage with respect to ground, VCC (Note 1): -0.5 V to +4.0 V; A9, OE, and RESET (Note 2): -0.5 V to +12.5 V; All other pins (Note 1): -0.5 V to VCC +0.5 V; (4)Output short circuit current (Note 3): 200 mA.
Features
29LV320BTC-90 features: (1)4,194,304 x 8 / 2,097,152 x 16 switchable; (2)Sector structure: 8K-Byte x 8 and 64K-Byte x 63; (3)Extra 64K-Byte sector for security: Features factory locked and identifiable, and customer lockable; (4)Twenty-Four Sector Groups: Provides sector group protect function to prevent program or erase operation in the protected sector group; Provides chip unprotect function to allow code changing; Provides temporary sector group unprotect function for code changing in previously protected sector groups; (5)Single power supply operation: 2.7 to 3.6 volt for read, erase, and program operations; (6)Latch-up protected to 250mA from -1V to Vcc + 1V; (7)Low Vcc write inhibit is equal to or less than 1.4V; (8)Compatible with JEDEC standard: Pinout and software compatible to single power supply flash.
Diagrams
