Product Summary
The 27C1000TC-90 is a 5V only, 1M-bit, One Time Programmable Read Only Memory. It is organized as 128K words by 8 bits per word, operates from a single + 5 volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. For programming outside from the system, existing EPROM programmers may be used. The 27C1000TC-90 supports an intelligent fast programming algorithm which can result in programming time of less than thirty seconds. This EPROM is packaged in industry standard 32 pin dual-in-line packages, 32 lead PLCC , 32 lead SOP , and 32 lead TSOP packages.
Parametrics
27C1000TC-90 absolute maximum ratings: (1)Ambient Operating Temperature: -40oC to 125oC; (2)Storage Temperature: -65oC to 125oC; (3)Applied Input Voltage: -0.5V to 7.0V; (4)Applied Output Voltage: -0.5V to VCC + 0.5V; (5)VCC to Ground Potential: -0.5V to 7.0V; (6)A9 & Vpp: -0.5V to 13.5V.
Features
27C1000TC-90 features: (1)128K x 8 organization; (2)Single +5V power supply; (3)+12.5V programming voltage; (4)Fast access time: 45/55/70/90/100/120/150 ns; (5)Totally static operation; (6)Completely TTL compatible; (7)1; (8)Operating current: 30mA; (9)Standby current: 100uA; (10)Package type: - 32 pin plastic DIP; - 32 pin SOP; - 32 pin PLCC; - 32 pin TSOP.

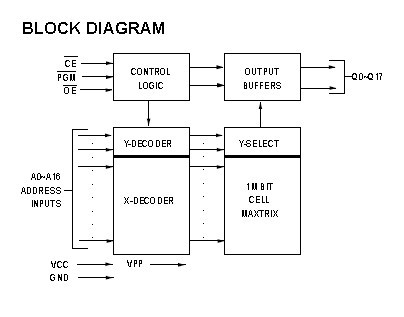

Diagrams
