Product Summary
The 23C64340GZ-740 is a 67,108,864 bits mask-programmable ROM. The word organization is selectable (BYTE mode : 8,388,608 words by 8 bits, WORD mode : 4,194,304 words by 16 bits). The active levels of OE (Output Enable Input) can be selected with mask-option. The 23C64340GZ-740 is packed in 48-pin TAPE FBGA.
Parametrics
23C64340GZ-740 absolute maximum ratings: (1)Supply voltage: VCC: –0.3 to +4.6 V; (2)Input voltage: VI: –0.3 to VCC+0.3 V; (3)Output voltage: VO: –0.3 to VCC+0.3 V; (4)Operating ambient temperature: TA: –10 to +70 °C; (5)Storage temperature: Tstg: –65 to +150 °C.
Features
23C64340GZ-740 features: (1)Pin compatible with NOR Flash Memory; (2)Word organization: 8,388,608 words by 8 bits (BYTE mode), 4,194,304 words by 16 bits (WORD mode); (3)Page access mode: BYTE mode : 8 byte random page access, WORD mode : 4 word random page access; (4)Operating supply voltage : VCC = 2.7 V to 3.6 V.

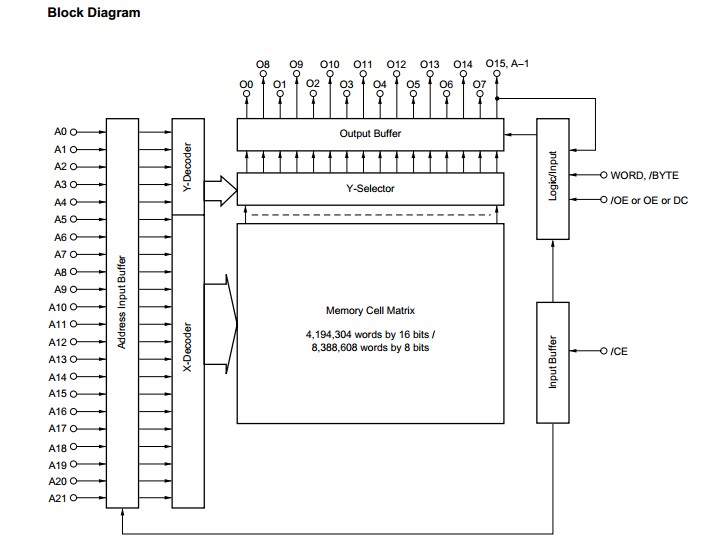

Diagrams
