Product Summary

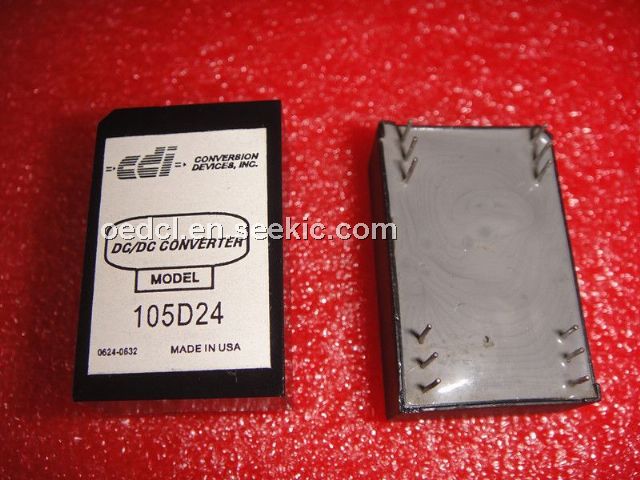

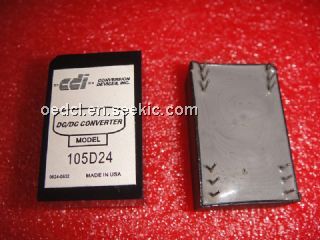

The 105D24 is a Dual Output DC/DC Converter in ultra-miniature SIP packages. 24 models operate from input bus voltages of 5V, 12 and 24V; producing output voltage levels of 5V, 9V, 12V,
15V, ±5, ±9V, ±12V or ±15V. With footprint as little as 0.108 in2, the 105D24 is ideal for innumerable board level power distribution applications where space is critical.

Parametrics

105D24 general specifications: (1)Nominal Input Voltage: 24VDC; (2)Input Voltage Range: 21.6 to 26.4VDC; (3)Output Voltage: ±5.0VDC; (4)Max. Output Current: ±100mA; (5)Efficiency @ FL: 72%; (6)Max. Load Regulation: 8%.

Features

105D24 features: (1)miniature single-inline-package; (2)1000VDC input/output isolation; (3)high efficiency; (4)wide operation temperature range; (5)MTBF ＞2000000 hours; (6)low cost.

Diagrams

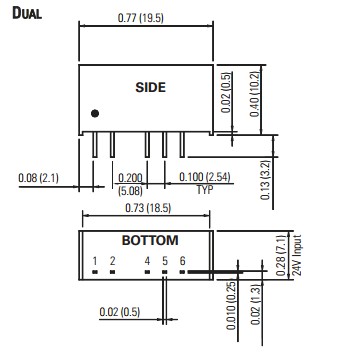

105D24 package dimension
