Product Summary

The ST402-AG41-24V is a Monochrome LCD.

Parametrics

ST402-AG41-24V absolute maximum ratings: (1)Rated Voltage: DC24V; (2)Rated Voltage Range: DC19.2V to 28.8V; (3)Power Consumption: 7W or less; (4)Voltage Endurance: AC500V, 20mA for up to 1 minute(between charging and FG terminals); (5)Insulation Resistance: 20MΩ or higher at DC500V(between charging and FG terminals); (6)Ambient Operating Temperature: 0 to 50℃; (7)Storage Temperature: -20 to 60℃.

Features

ST402-AG41-24V features: (1)Electrostatic Discharge Immunity: 6kV (complies with EN 61000-4-2 Level 3); (2)Corrosive Gasses: Free of corrosive gasses; (3)Grounding: 100Ω or less, or your country’s applicable standard; (4)Ratings: Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*2; (5)External Dimensions: 130mm [5.12in]W × 104mm [4.09in]H × 41mm [1.61in]D; (6)Weight: 400g (1.1lb) or less; (7)Cooling Method: Natural air circulation.

Diagrams

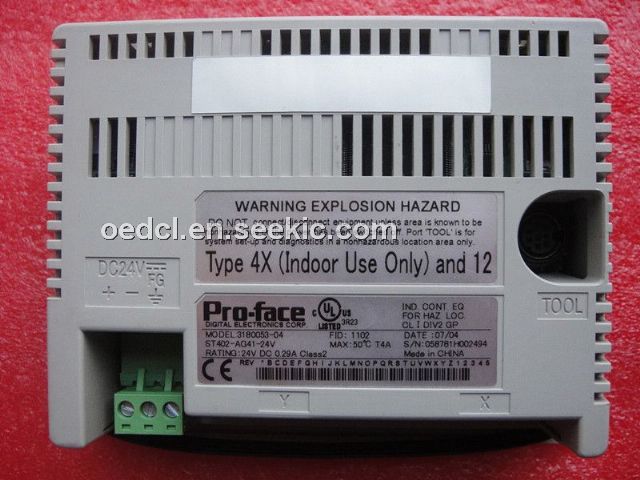

ST402-AG41-24V block diagram
