Product Summary

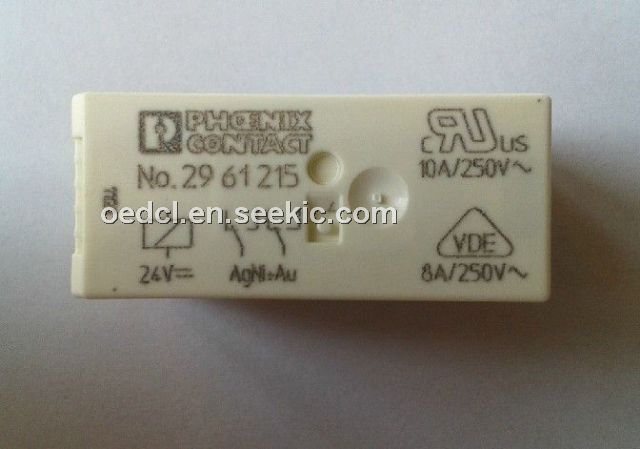

The 2961215 is a Pluggable miniature relay.

Parametrics

2961215 absolute maximum ratings: (1)Nominal input voltage UN: 24 V DC; (2)Nominal input current at UIN: 7 mA; (3)Typical response time: 5 ms; (4)Typical release time: 2.5 ms; (5)Coil resistance: 3390 Ω ± 10% (at 20°C); (6)Minimum switching voltage: 100 mV; (7)Maximum inrush current: 50 mA.

Features

2961215 features: (1)EAN: 4017918130879; (2)Pack: 10 pcs.; (3)Customs tariff: 85364190; (4)Weight/Piece: 0.00665 KG; (5)Catalog page information: Page 83 (IF-2009).

Diagrams

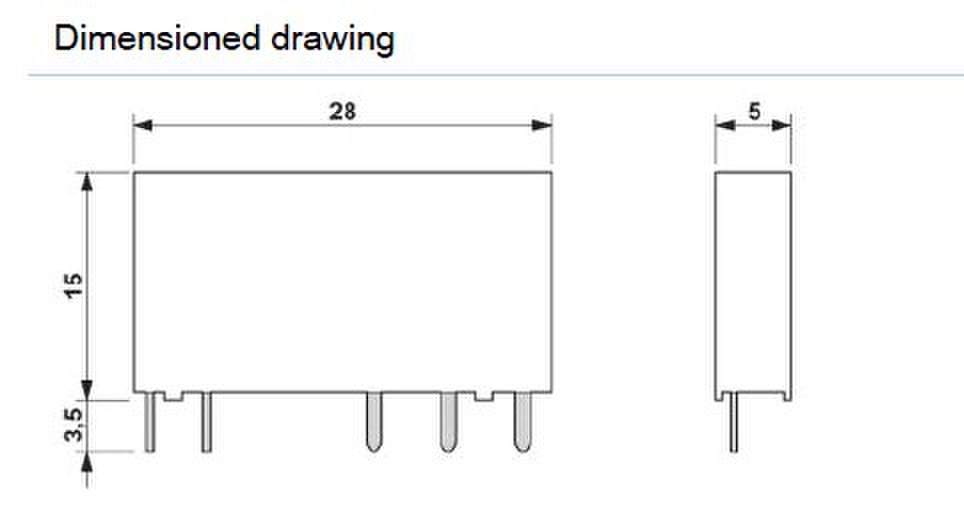

2961215 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2961215
2961215
Phoenix Contact
General Purpose / Industrial Relays REL-MR 24DC/21-21/AU REPLACEMENT RELAY
Data Sheet
0-1: $3.86
1-10: $3.74
10-50: $3.58
50-100: $3.49
