Product Summary

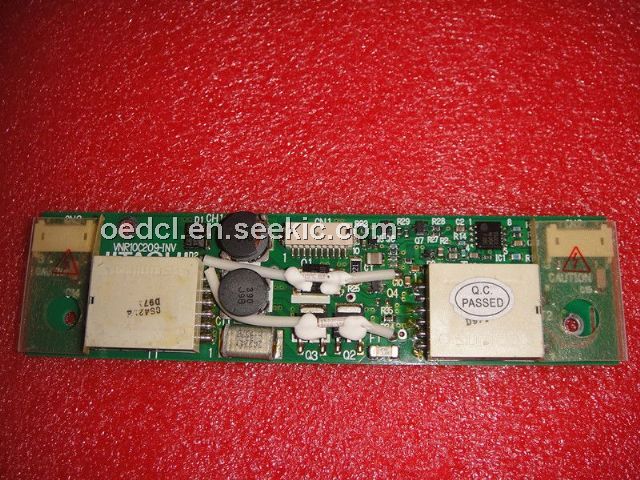

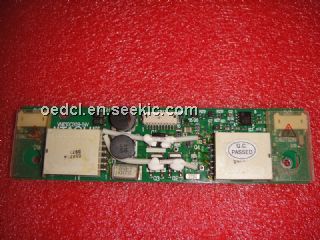

The VNR10C209-INV is a LCD Inverter Board.
Parametrics
VNR10C209-INV absolute maximum ratings: (1)supply voltage: 0 to 20.0V; (2)input voltage: -1 to VIN+1V; (3)storage temperature: -20 to 60°C; (4)operating temperature: 0 to 50°C; (5)humidity: 10 to 90%(RH).
Features
VNR10C209-INV features: (1)supply voltage: 9 to 19.0V; (2)input current: 570 to 770mA; (3)open output voltage: 1500V(o-p); (4)frequency: 25 to 35kHz; (5)rush current(VIN=12V): 8.0A(o-p); (6)leak current(VIN=12V): 10uA.

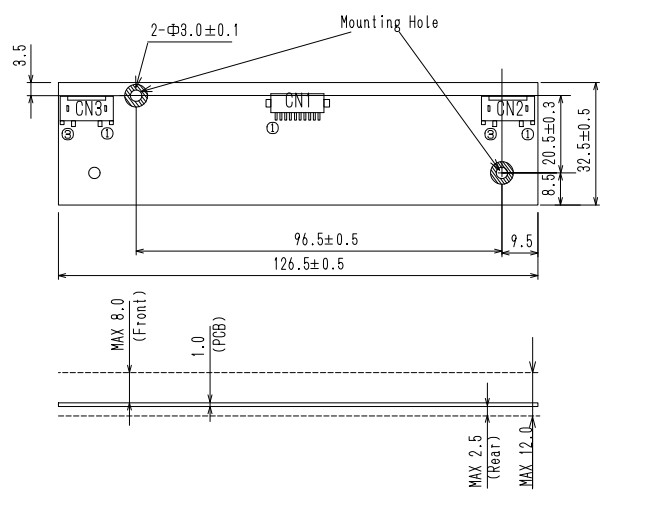

Diagrams
